Class 6 Pre-Class: Caching
Cache Types & Patterns, Eviction Policies & CDN

The Single Most Impactful Optimization

Caching is the technique of storing frequently accessed data in a faster storage layer so that future requests for that data are served more quickly. It is the single most impactful performance optimization in system design. A well-implemented caching layer can reduce database load by 95%, cut response times from 50ms to 1ms, and allow a system to handle 10x–100x more traffic without adding more database servers.

The fundamental principle is the memory hierarchy: data that is closer to the CPU is faster to access. An L1 cache read takes 1 nanosecond. A Redis read takes 0.5 milliseconds. A database read from SSD takes 5 milliseconds. A cross-network API call takes 50–200 milliseconds. Caching moves data from slow layers (disk, network) to fast layers (memory, edge servers).

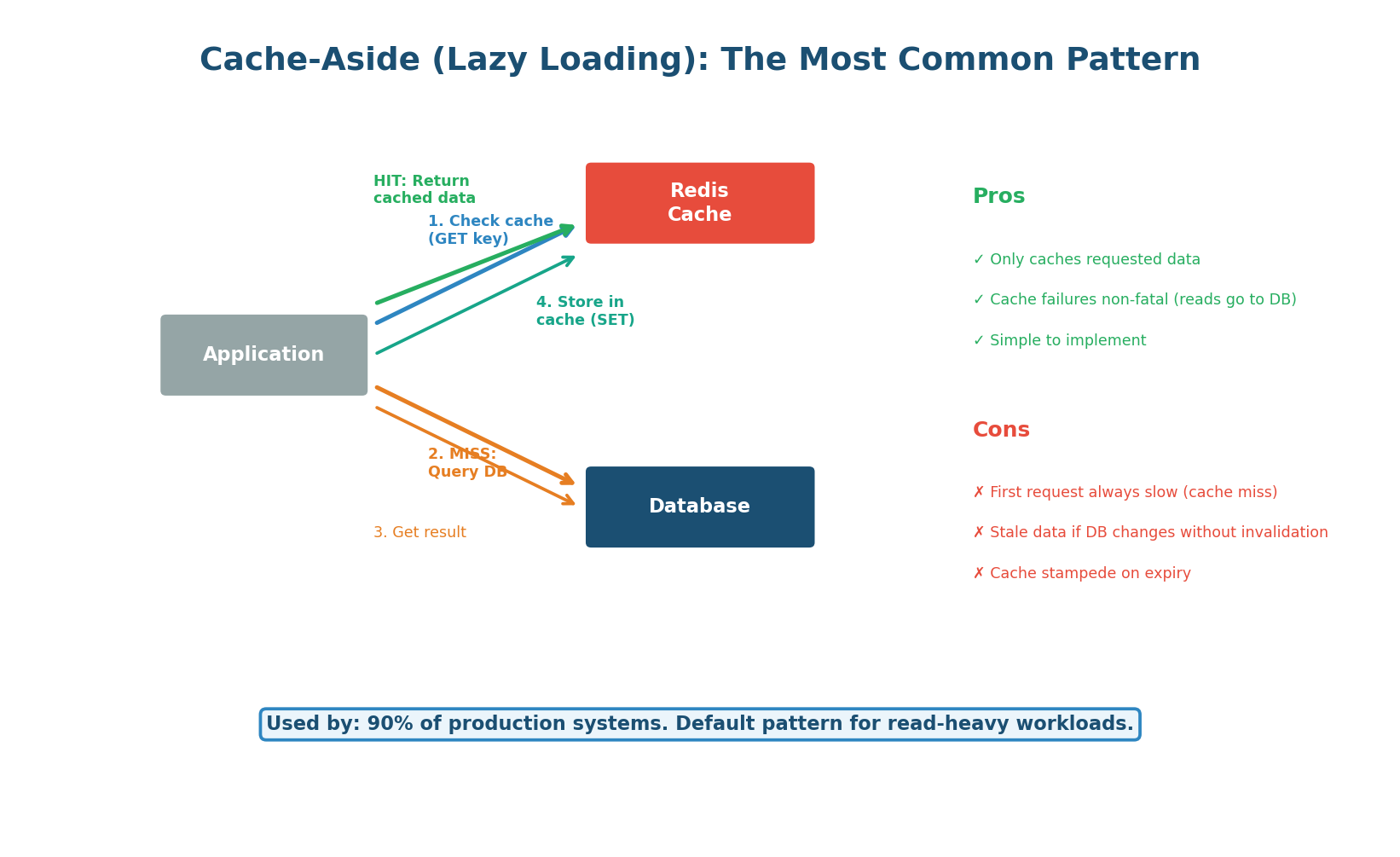

Cache-aside is the most common caching pattern and should be your default in system design interviews. The application is responsible for reading from and writing to the cache. On a read: the app checks the cache first. If the data is there (cache hit), it returns immediately. If not (cache miss), the app queries the database, stores the result in the cache, and then returns. The cache is populated lazily — only data that is actually requested gets cached.

When to use: Read-heavy workloads (90%+ reads). This is the default for most web applications: user profiles, product catalogs, API responses, configuration data. Used by virtually every production system.

How it handles writes: On a write, the application updates the database and then either deletes the cache key (most common, called cache invalidation) or updates the cache key (less common, called cache refresh). Deleting is preferred because it avoids the risk of the cache and DB getting out of sync if one write fails.

Write-Through: In write-through caching, every write goes to both the cache and the database synchronously. The write is not confirmed to the client until both the cache and database have been updated. This guarantees the cache is always consistent with the database — there is never stale data. The trade-off is higher write latency (two writes per operation) and the fact that data may be cached that is never read.

Use when: Data consistency is critical and writes are relatively infrequent. User profiles, permissions, configuration that must never be stale. Often combined with cache-aside for reads.

Write-Behind (Write-Back): In write-behind caching, writes go only to the cache. The cache then asynchronously flushes changes to the database in batches. The client gets an immediate response (cache-speed write) without waiting for the database. This dramatically improves write performance but introduces the risk of data loss: if the cache crashes before flushing, uncommitted writes are lost.

Use when: Write speed matters more than durability. View counts, like counts, analytics metrics, real-time dashboards. The data is valuable but not catastrophic to lose a few seconds of.

Read-Through: Read-through is similar to cache-aside but the cache itself is responsible for loading data from the database on a miss (rather than the application). The application always reads from the cache; the cache transparently fetches from the DB when needed. This simplifies the application code but couples the cache to the data source.

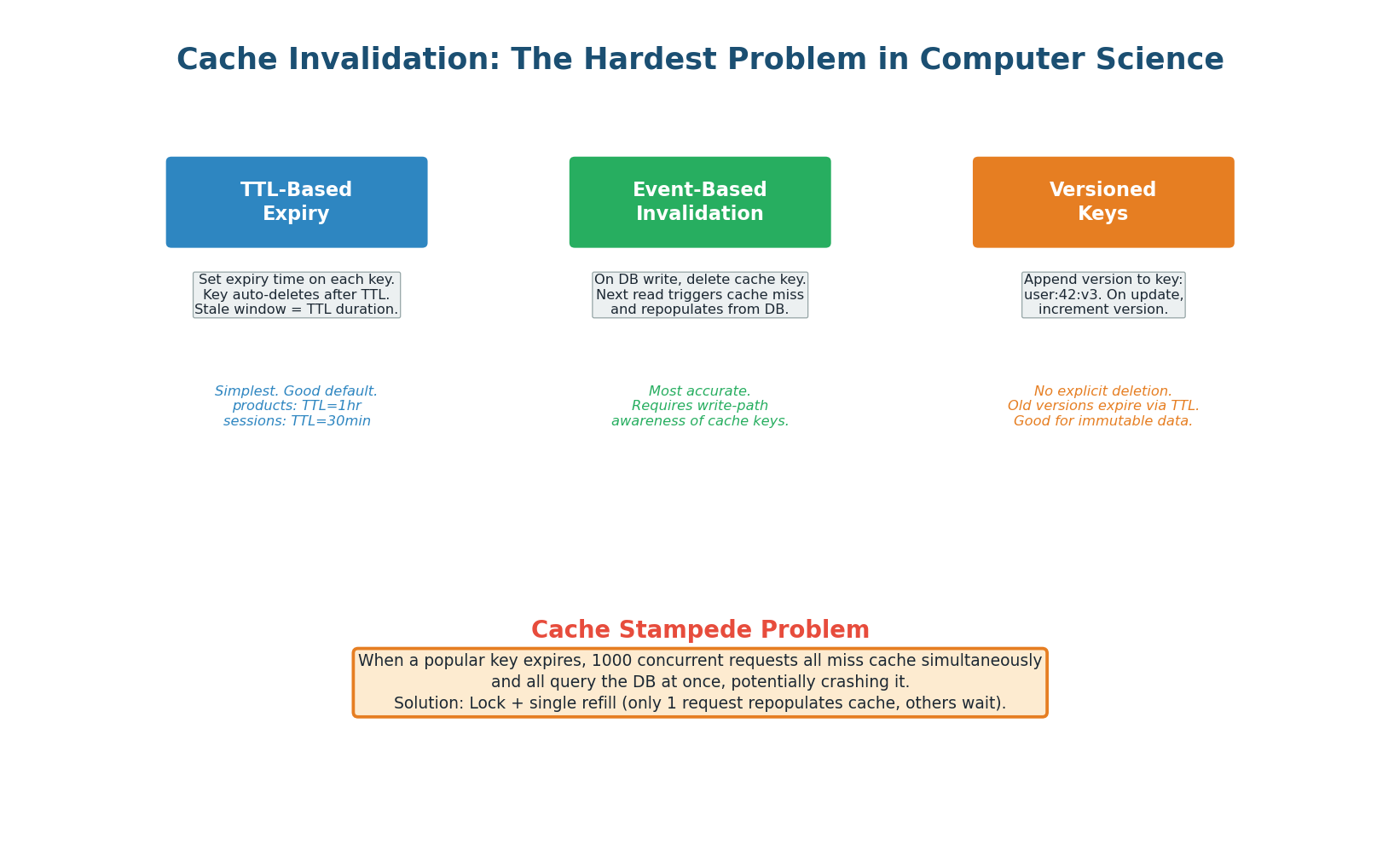

Phil Karlton famously said: "There are only two hard things in Computer Science: cache invalidation and naming things." Cache invalidation is hard because you must decide when cached data is stale and needs to be refreshed. Too aggressive (short TTL) and you lose the caching benefit. Too lax (long TTL) and users see outdated data.

TTL-Based Expiry: Set a Time-To-Live (TTL) on each cached key. After the TTL expires, the key is automatically deleted, and the next read triggers a cache miss that repopulates from the database. This is the simplest and most common strategy. Choose TTL based on how stale the data can tolerate: product prices (5 minutes), user profiles (1 hour), static content (24 hours).

Event-Based Invalidation: When the database changes, explicitly delete the corresponding cache key. The next read triggers a cache miss and repopulates with fresh data. This is more accurate than TTL-based expiry because the cache is invalidated immediately when data changes, not after an arbitrary timeout. The challenge is ensuring every write path knows which cache keys to invalidate.

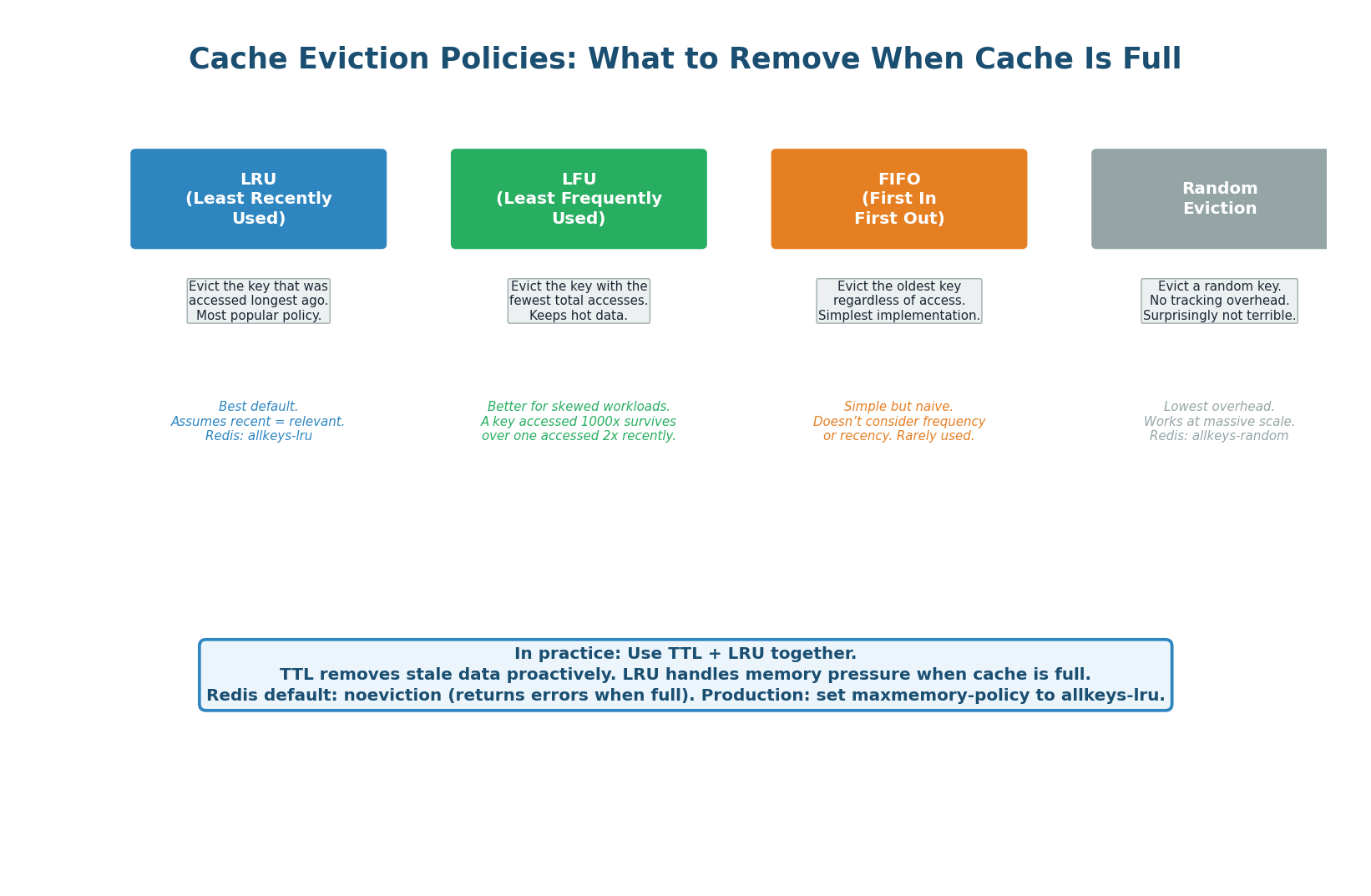

When a cache is full and a new key needs to be stored, the cache must evict (remove) an existing key. The eviction policy determines which key gets removed. Choosing the right policy has a significant impact on cache hit rate.

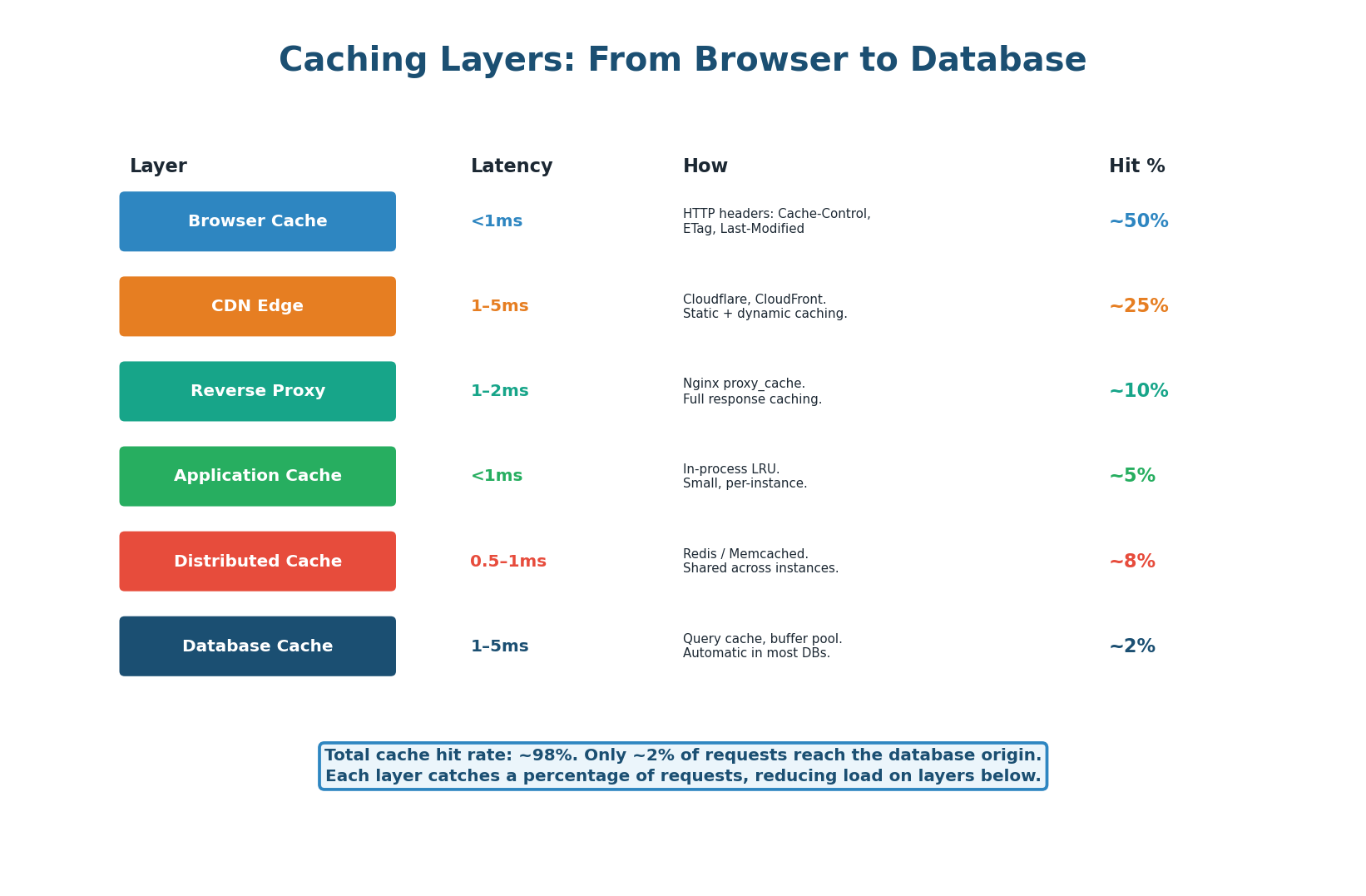

A production system uses multiple layers, each catching a percentage of requests and reducing the load on layers below. Together they achieve ~98% cache hit rate.

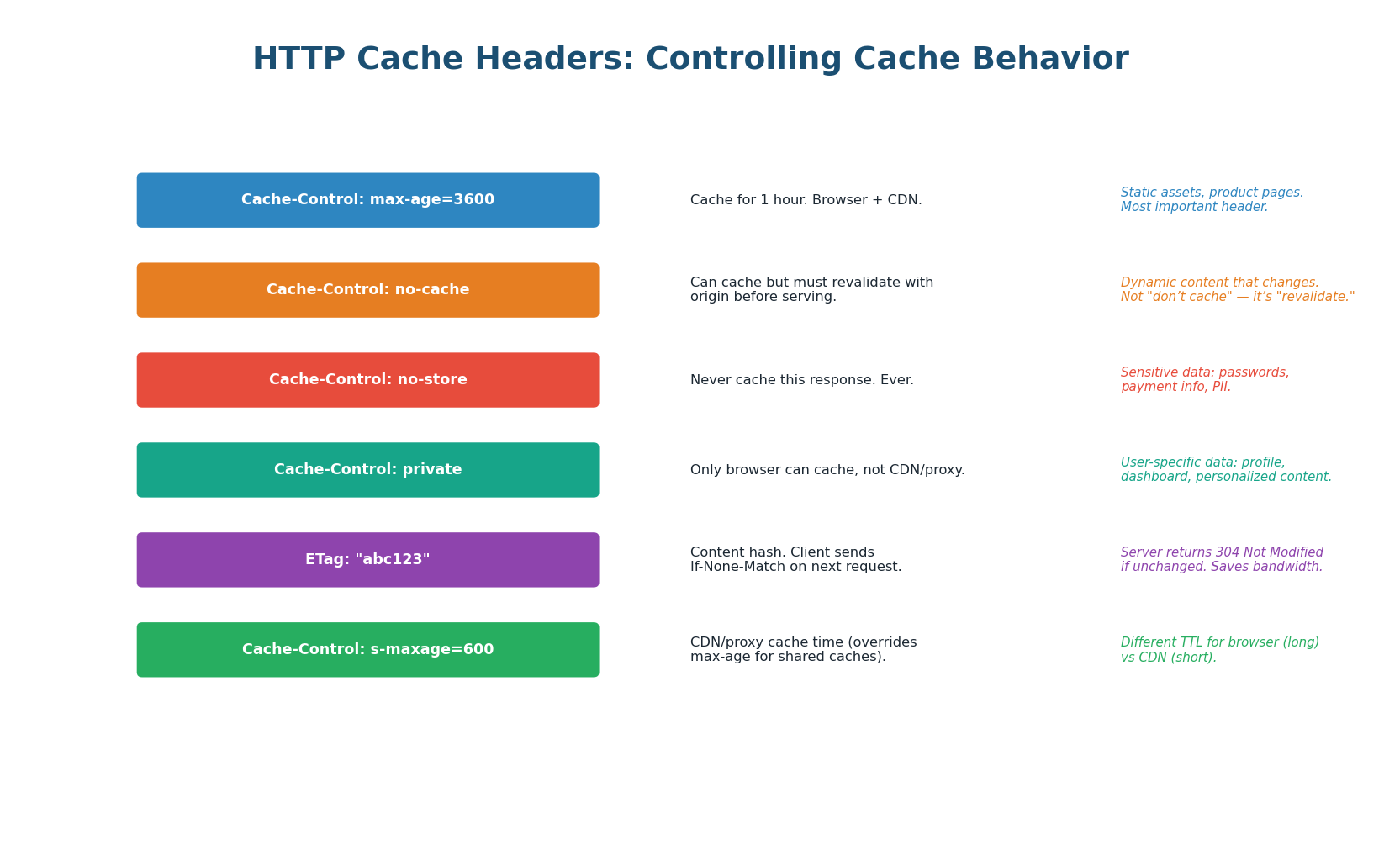

• Layer 1: Browser Cache (~50% of requests) — Controlled via HTTP Cache-Control headers. Cache-Control: max-age=3600 stores the response locally for 1 hour. Zero server resources required.
• Layer 2: CDN Edge (~25% of remaining) — CDN edge servers (Cloudflare, CloudFront) cache responses at 300+ global locations, returning responses in 1–5ms without reaching your origin server.
• Layer 3: Reverse Proxy Cache (~10%) — Nginx or Varnish cache entire HTTP responses at the reverse proxy level. Useful for API responses that are the same for many users.
• Layer 4: Application In-Process Cache (~5%) — A small LRU cache within the application process itself (Python dict, Java ConcurrentHashMap, Go sync.Map). Extremely fast (<1ms, no network hop) but not shared across instances.
• Layer 5: Distributed Cache – Redis/Memcached (~8%) — Shared, distributed cache accessible by all application instances. Sub-millisecond latency. Primary application cache for most systems.
• Layer 6: Database Buffer Pool (~2%) — The database itself caches recently accessed data pages in its buffer pool (PostgreSQL's shared_buffers, MySQL's InnoDB buffer pool). Automatic, no application changes required.

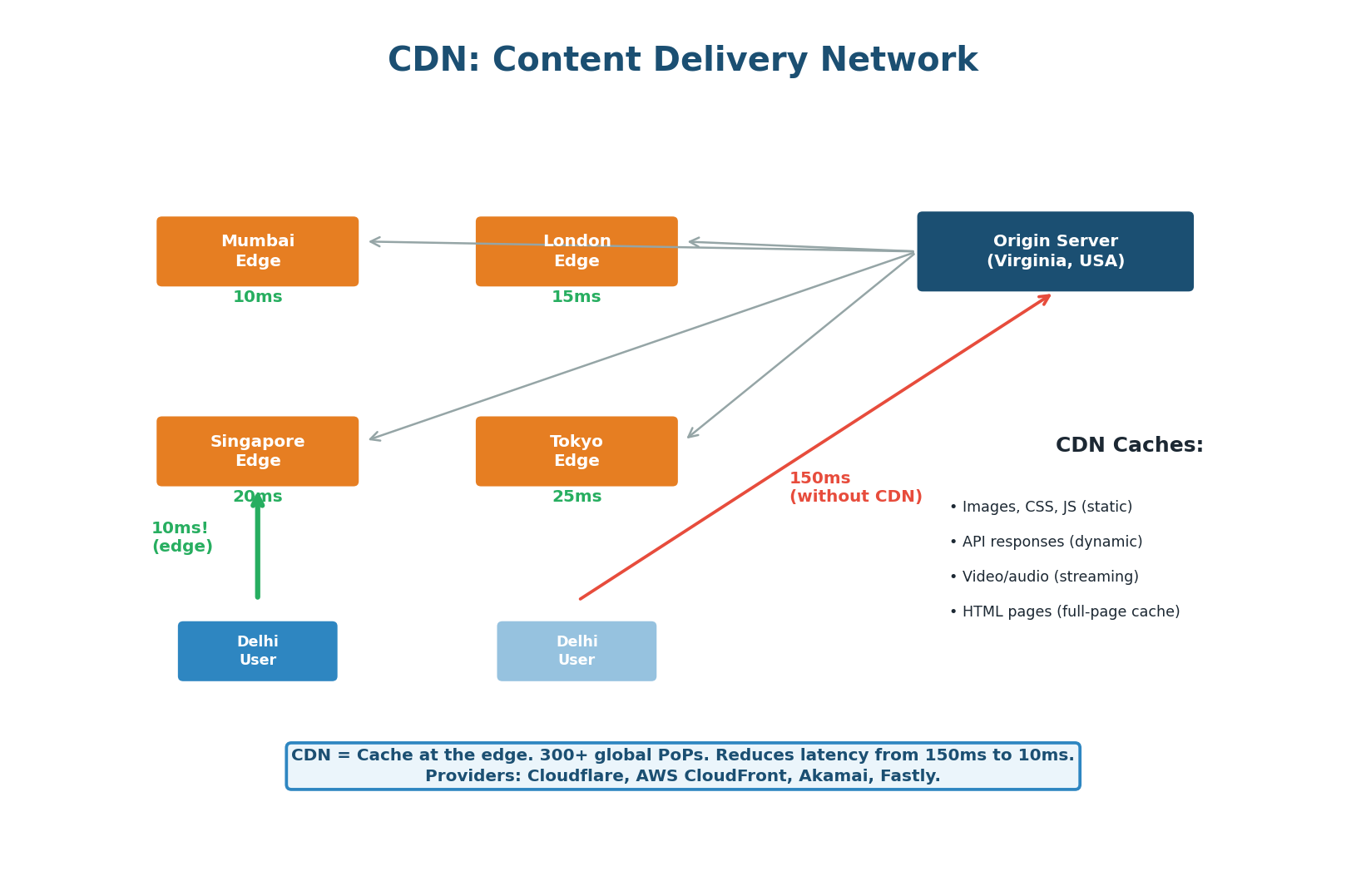

A CDN is a geographically distributed network of edge servers that caches content close to users. CDNs reduce latency by 80–90%, offload 60–80% of traffic from your origin, and provide DDoS protection.

What CDNs Cache:

• Static assets (images, CSS, JS, fonts, videos) — long TTLs (24 hours to 1 year), use fingerprinted filenames for cache busting.
• Dynamic API responses (product listings, trending content, public feeds) — shorter TTLs (1–60 minutes).
• Full HTML pages — for content-heavy sites; eliminates all server-side processing. Edge-side Includes (ESI) allow caching templates with dynamic fragments.

Cache Patterns: Cache-aside (lazy loading) is the default for 90% of systems. Write-through for consistency-critical data. Write-behind for write-heavy metrics.

Invalidation: TTL-based is simplest. Event-based is most accurate. Watch out for cache stampede on popular key expiry — use jitter and lock-based refill.

Eviction: LRU is the best default. LFU for stable hot datasets. Always configure Redis maxmemory and eviction policy. Never use noeviction (default) in production.

Cache Layers: Browser → CDN → reverse proxy → in-process → Redis/Memcached → database buffer pool. Together they achieve 98%+ cache hit rate.

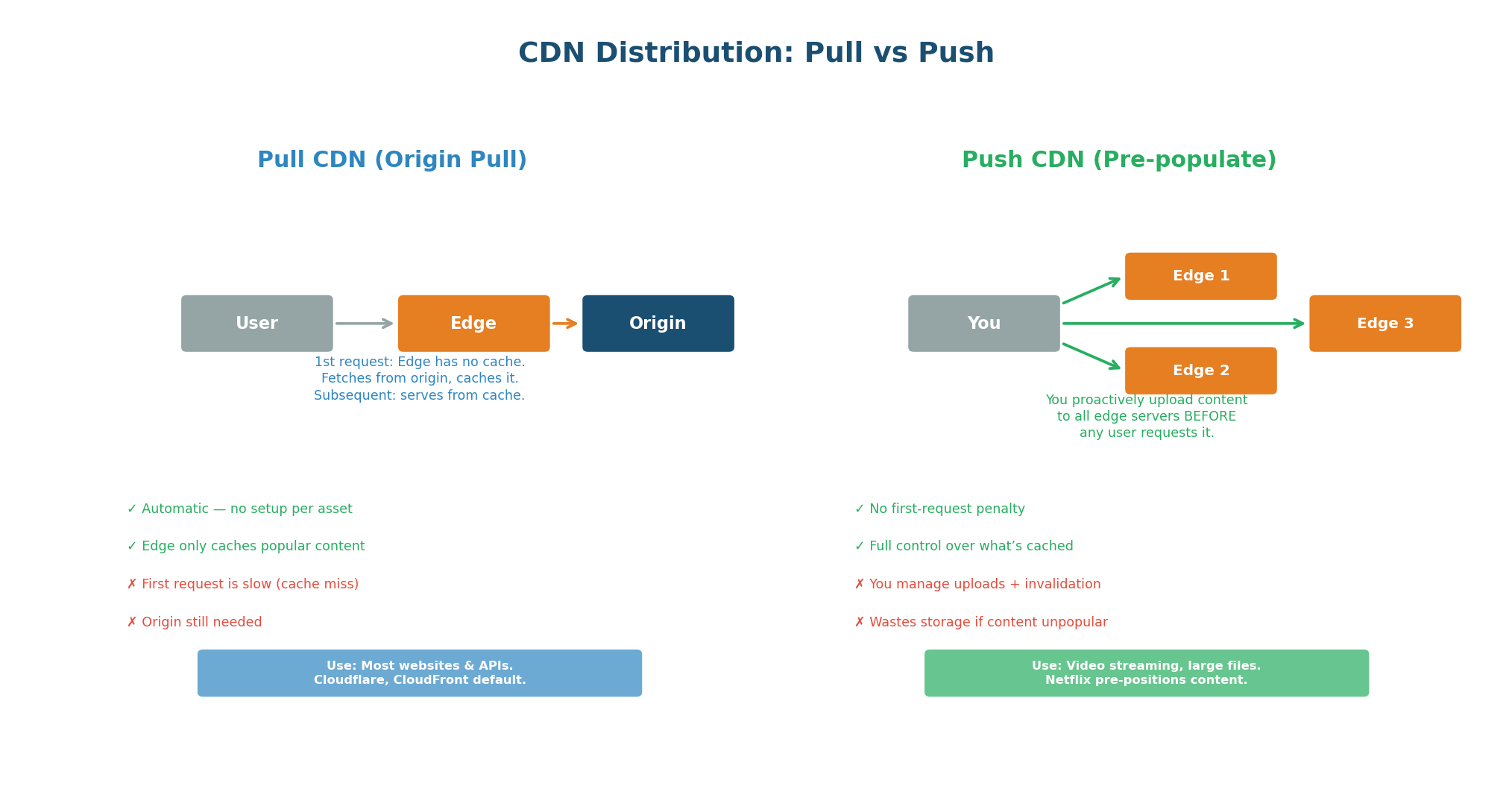

CDN: Pull CDNs (Cloudflare, CloudFront) auto-fetch from origin. Push CDNs (Netflix Open Connect) pre-position content. Always use no-store for sensitive data.
